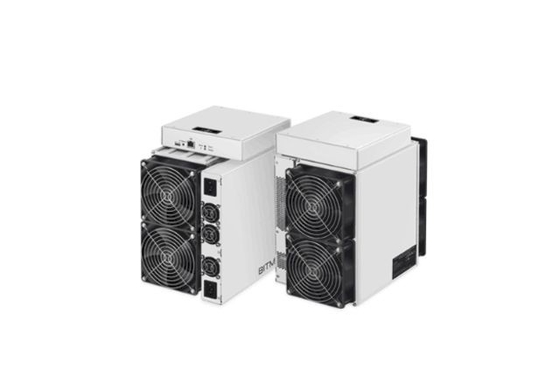

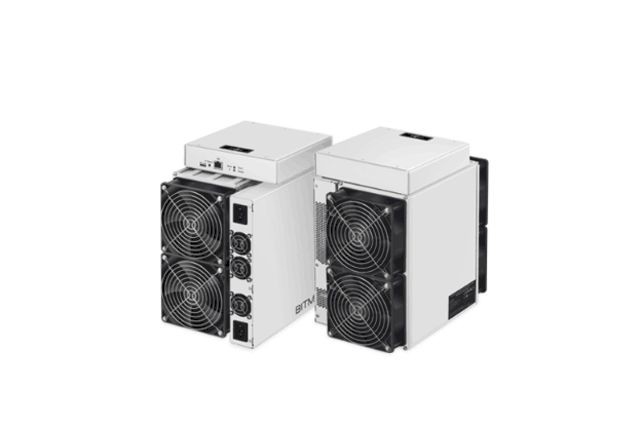

Used BTC miner machine Bitmain Ant Miner T17 40t is an Asics Bitcoin miner

Used BTC miner machine Bitmain Ant Miner T17 40t is an Asics Bitcoin miner

Basic parameters
Mining machine type ASIC mining machine (professional mining machine)
Generate currency BTC/BCH
Rated computing power 40TH/s±2%
Rated power consumption 2200W+15%
Rated voltage 200V-240V
Other parameters
Product size 486×265×388mm
Product weight 9.73kg
network connection ethernet
Product Features
Product Features 1

Wall Power (Watt) (1-1) 2200

Number of chips 90

Number of Hashboards 3

Bare metal size (L*W*H), mm (2-1) 298.2*178.0*296.6

Outer box size (L*W*H), mm 486*388*265

Bare metal weight (kg) (2-2) 9.73

The weight of the whole machine (including packaging, kg) 11.50

Antminer T17 (40Th)

The second-hand Antminer T17 is equipped with the second-generation 7nm chip BM1397 developed by Bitmain, with a computing power of up to 40TH/s and an energy efficiency ratio of 55J/T. It can support the mining of encrypted digital currencies such as BTC and BCH.
Thanks to the continuous strengthening of the second-generation 7nm chip BM1397 developed by Bitmain in terms of circuit structure and low-power technology, the overall performance of the Antminer T17 has been significantly improved. Compared with the previous generation product, the Antminer T15, the computing power Increase by 73.9%, reduce energy consumption by 17.9%
The Antminer T17 follows the all-in-one design of the flagship product S17. The lines, control boards and computing power boards in the machine are better packaged and can adapt to different mining farm environments. With the new APW9 power supply, 16-18V high voltage output can effectively reduce the power loss during the power conversion process and improve the power conversion efficiency.

The second-hand Antminer T17 also pays attention to heat dissipation performance. In terms of heat dissipation structure, the dual-tube fan heat dissipation mode is adopted. Compared with the traditional single fan device, the heat dissipation air path is shortened by 50%, and the temperature difference between the air inlet and outlet is reduced. The cooling effect of the whole machine is greatly improved, which effectively guarantees the stability of the mining machine.
