62t 62th/S Whatsminer M20s Asic BTC Miner Machine TSMC Chip

62t 62th/S Whatsminer M20s Asic BTC Miner Machine TSMC Chip

  • 62t 62th/S Whatsminer M20s Asic BTC Miner Machine TSMC Chip
62t 62th/S Whatsminer M20s Asic BTC Miner Machine TSMC Chip
Product Details:
Place of Origin: China
Brand Name: whatsminer
Model Number: M20s
Payment & Shipping Terms:
Minimum Order Quantity: From 10-20 units
Price: Negotiable
Delivery Time: 3-10 days
Payment Terms: USDT/USD
Supply Ability: a lot
Contact Now
Detailed Product Description
Name: BTC Miner Machine Model: M20s
Algorithm: SHA256 Coin: BTC
Payment Terms: USDT, T/T, Bank Transfer Quantity: 100 PIECES/DAY
High Light:

whatsminer m20s asic 62t


whatsminer m20s BTC Miner Machine


62th/S BTC Miner Machine


Whatsminer M20s 62t 62th/s Asic BTC Miner Machine​


Product Name
Whatsminer M20S 62t
Power Consumption





  • Power consumption - 2976 watts.
  • Power Consumption in Slow Performance Mode - 1960 W.
  • The technical process is 12 nm.
  • Dimensions - 125x155x335 mm.
  • Operating temperature range - from +5 to +40 degrees.
  • The admissible humidity is from 5 to 95%.
  • Weight - 8 kg.
  • Noise level - 75 dB.
  • The chip used is TSMC (from a Taiwanese manufacturer).

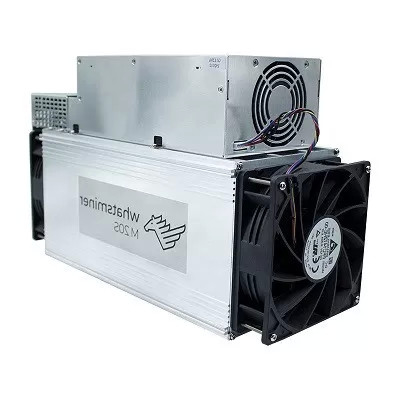

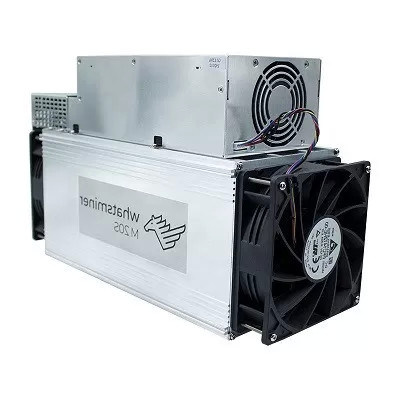

Design features

Whatsminer M20S 62Th consists of the following elements: two coolers (12 volts), built-in power supply (up to 20 amperes), control board, three hash boards. The ASIC is made of an easily alloyed aluminum body, which is weakly susceptible to heat and corrosion.

Two fans are located in parallel on the sides of the rectangular structure, the power supply is located on top. Coolers effectively remove heat outside, they work quite quietly. Additional panels provide efficient airflow to the cooling system. However, such a device is not suitable for a residential building, especially when operating at maximum performance.

The power consumption of the M20S, in comparison with its predecessor M20V2, has become even lower, which is explained by the slightly changed configuration of the chip.


Payback period and profitability

The profitability of the M20S can be calculated using the popular service Whattomine. With a productivity of 68 TH, the income is $ 0.50 excluding electricity costs. This is not the highest indicator among mining equipment, however, given the cost of the ASIC, the payback will be 6-7 months.

According to this indicator, the M20S is ahead of its two main competitors - Cheetah F1 and Cheetah F5i, which pay off in an average of 7-9 months. The payback period can be reduced if the situation in the cryptocurrency market improves. The main digital currency is Bitkoin, the profitability depends on this coin (even if you mine another token).


Connection and configuration

To connect the M20S to the network, the owner will need a 3x2mm cable and patch cord to create an Ethernet connection. After starting the device, you need to open the control panel, this is done by installing the software (you can download it on the official website of the manufacturer).

In the control panel, the owner can change the password, configure the pool, reboot the system, change the wallet, workers, etc. To find out the performance of each board, click Status, to check the system logs and running processes - CGMiner API Log. The operating mode is configured with the Power button (Normal mode and Low power mode).
