| Place of Origin: | China |
| Brand Name: | Avalon |
| Model Number: | 841 |
| Minimum Order Quantity: | From 10-20 units |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 3-10 days |
| Payment Terms: | USDT/USD |
| Supply Ability: | a lot |
| Name: | BTC Miner Machine | Model: | 841 |
|---|---|---|---|
| Algorithm: | SHA256 | Coin: | BTC |
| Payment Terms: | USDT, T/T, Bank Transfer | Quantity: | 100 PIECES/DAY |
| High Light: | 13.6th/s Canaan Avalon Miner,asic avalon 841 13.6t,BTC asic avalon 841 |
||

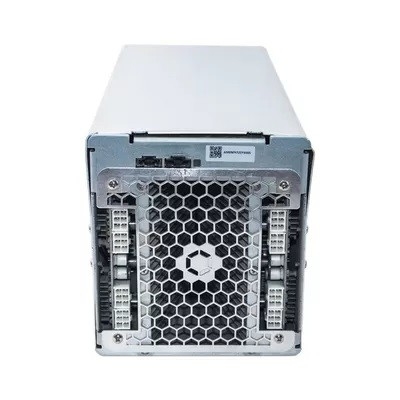

Canaan Avalon 841 13.6t Avalonminer 841 13.6th/s Asic BTC Miner Machine
| Manufacturer | Canaan |
|---|---|
| Model | AvalonMiner 841 |
| Also known as | Avalon A8 |
| Release | April 2018 |
| Size | 150 x 136 x 370mm |
| Weight | 4700g |
| Chip boards | 4 |
| Chip name | A3210 |
| Chip size | 16nm |
| Chip count | 104 |
| Noise level | 65db |
| Fan(s) | 1 |
| Power | 1290W |
| Wires | 8 * 6pin |
| Voltage | 12 - 12.6V |
| Interface | AUC3 - RJ45 |
| Temperature | 5 - 30 °C |
| Humidity | 5 - 95 % |
Avalon Miner 841 is a Bitcoin miner that uses 16nm ASIC chip technology. Released in April 2018, it is a second 8th generation AvalonMiner model. The Avalon Miner 841 weighs about 4.7 kg, and its outer dimensions are 370mm x 150mm x 136mm. This Miner 841 lacks an in-built controller and requires a separate controller. It has a reliable and stable design, and a compact shell case helps conserve space.
Due to the 16nm chip technology, the miner has a high power efficiency of 0.99J per Gh/s. The Avalon 841 comes with a top hash rate of 13.6Th/s and power consumption of 1290W. The Avalon miner 841 has a high price, but this is compensated by the reduced downtime, less need for repairs, and low repair costs. This reduces the total miners' cost during its lifetime.
104 A3210HP 16nm ASIC chips power the Avalon Miner 841. The rated power voltage is about 12 - 12.6V, has four hash boards, and the hash board frequency is automatically controlled. The miner comes with one Avalon Miner Controller (RPi 3 based), a MicroSD card with pre-installed Wrt-based controller firmware, and 4 AUC3 12C USB converters. The user can use the Raspberry Pi single-board computer as the controller unit.
